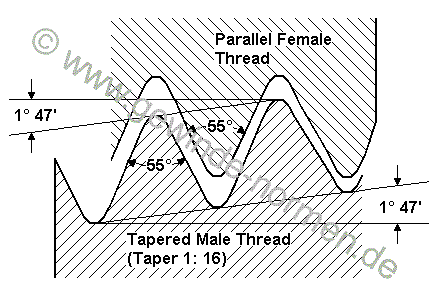

Whitworth Pipe Thread for pipes and fittings. Parallel female thread and tapered male thread (taper 1 : 16).
An appropriate sealing compound can be used in the thread to ensure a leak-proof joint.
The thread angle is 55°.
Male Thread Diameter |
Female Thread Diameter |
Pipe Minor Diameter mm |
Pipe Major Diameter mm |
Tapping Drill Size mm |
TPI | Pitch mm |
R 1/16" | Rp 1/16" | 3 | 7.723 | 6.561 | 28 | 0.907 |
R 1/8" | Rp 1/8" | 6 | 9.728 | 8.566 | 28 | 0.907 |
R 1/4" | Rp 1/4" | 8 | 13.157 | 11.445 | 19 | 1.337 |
R 3/8" | Rp 3/8" | 10 | 16.662 | 14.950 | 19 | 1.337 |
R 1/2" | Rp 1/2" | 15 | 20.955 | 18.631 | 14 | 1.814 |
R 3/4" | Rp 3/4" | 20 | 26.441 | 24.117 | 14 | 1.814 |
R 1" | Rp 1" | 25 | 33.249 | 30.291 | 11 | 2.309 |
R 1 1/4" | Rp 1 1/4" | 32 | 41.910 | 38.952 | 11 | 2.309 |
R 1 1/2" | Rp 1 1/2" | 40 | 47.803 | 44.845 | 11 | 2.309 |
R 2" | Rp 2" | 50 | 59.614 | 56.656 | 11 | 2.309 |
R 2 1/2" | Rp 2 1/2" | 65 | 75.184 | 72.226 | 11 | 2.309 |
R 3" | Rp 3" | 80 | 87.884 | 84.926 | 11 | 2.309 |
R 4" | Rp 4" | 100 | 113.030 | 110.072 | 11 | 2.309 |
R 5" | Rp 5" | 125 | 138.430 | 135.472 | 11 | 2.309 |
R 6" | Rp 6" | 150 | 163.830 | 160.872 | 11 | 2.309 |
