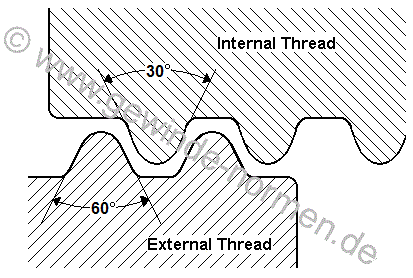

Knuckle Thread DIN 168 especially for glass containers.

Nominal
Diameter		 External Thread Internal Thread Pitch
mm
  Major
Diameter
mm		 Minor
Diameter
mm		 Major
Diameter
mm		 Minor
Diameter
mm
  max. min. max. min. min. max. min. max.
GL 8 8.00 7.65 6.60 6.25 8.10 8.30 6.70 6.90 2.00
GL 10 10.00 9.65 8.60 8.25 10.10 10.30 8.70 8.90 2.00
GL 12 12.00 11.65 10.60 10.25 12.10 12.30 10.70 10.90 2.00
GL 14 14.00 13.60 12.32 11.92 14.10 14.35 12.42 12.67 2.50
GL 16 16.00 15.60 14.32 13.92 16.10 16.35 14.42 14.67 2.50
GL 18 18.00 17.50 15.98 15.48 18.10 18.40 16.08 16.38 3.00
GL 20 20.00 19.50 17.98 17.48 20.10 20.40 18.08 18.38 3.00
GL 22 22.00 21.50 19.98 19.48 22.10 22.40 20.08 20.38 3.00
GL 25 25.00 24.50 22.98 22.48 25.10 25.40 23.08 23.38 3.00
GL 25 25.00 24.50 22.64 22.14 25.10 25.40 22.74 23.04 3.50
GL 28 28.00 27.50 25.98 25.48 28.10 28.40 26.08 26.38 3.00
GL 32 32.00 31.30 29.30 28.60 32.15 32.55 29.45 29.85 4.00
GL 36 36.00 35.30 33.30 32.60 36.15 36.55 33.45 33.85 4.00
GL 40 40.00 39.30 37.30 36.60 40.15 40.55 37.45 37.85 4.00
GL 45 45.00 44.30 42.30 41.60 45.15 45.55 42.45 42.85 4.00
GL 50 50.00 49.20 47.30 46.50 50.30 50.80 47.60 48.10 4.00
GL 56 56.00 55.20 53.30 52.60 56.30 56.80 53.60 54.10 4.00
GL 63 63.00 62.00 60.00 59.00 63.40 64.00 60.40 61.00 5.00
GL 70 70.00 69.00 67.00 66.00 70.40 71.00 67.40 68.00 5.00
GL 80 80.00 79.00 77.00 76.00 80.40 81.00 77.40 78.00 5.00
GL 90 90.00 89.00 87.00 86.00 90.40 91.00 87.40 88.00 5.00
GL 100 100.00 89.80 97.00 95.80 100.40 101.00 97.40 98.00 5.00
GL 112 112.00 110.80 109.00 108.80 112.40 113.00 109.40 110.00 5.00
GL 125 125.00 123.80 122.00 120.80 125.40 126.00 122.40 123.00 5.00
